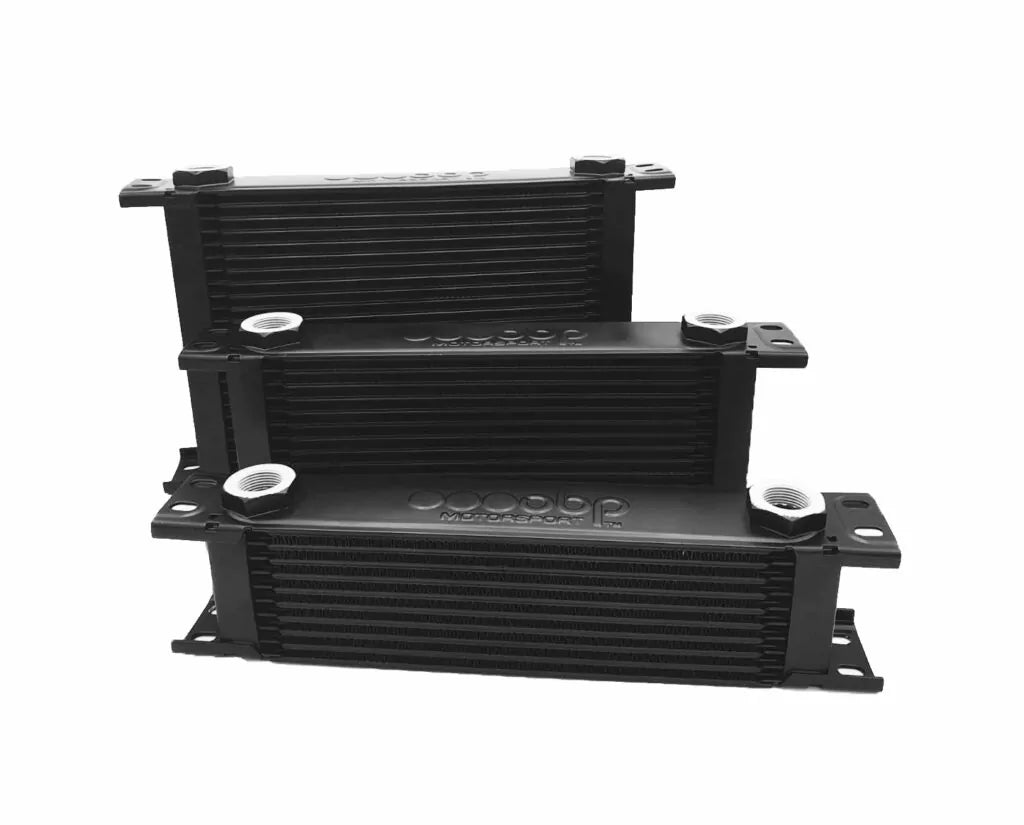

obp Performance Oil Coolers with M22 Female Ports
The latest launch for obp Motorsport comes the lightweight performance Oil Coolers. These units are designed to cool the engine oil by using air flow on the fins – making them perfect for competition vehicles requiring optimal performance. They feature M22 Female fittings on the top making them a universal fit. We have several options available that meet you requirements with additional options of M22 Adaptors to fit.
They are designed to be mounted so they are protected from vehicle vibrations and all mounting points to be used.
Technical Spec
Working Pressure: 0-145 psi (0 – 10Bar)
Max Pressure: 170 psi (12 Bar)
Burst Pressure: 535 psi (37 Bar)
Testing Pressure: 145 psi (10 Bar)
Leak Test Pressure: 60psi (4 Bar)
Oil Cooler Dimensions
All dimensions are mm.
Length B indicated the distance between M22 Fitting centres.
Overall Length 330mm (including the brac
